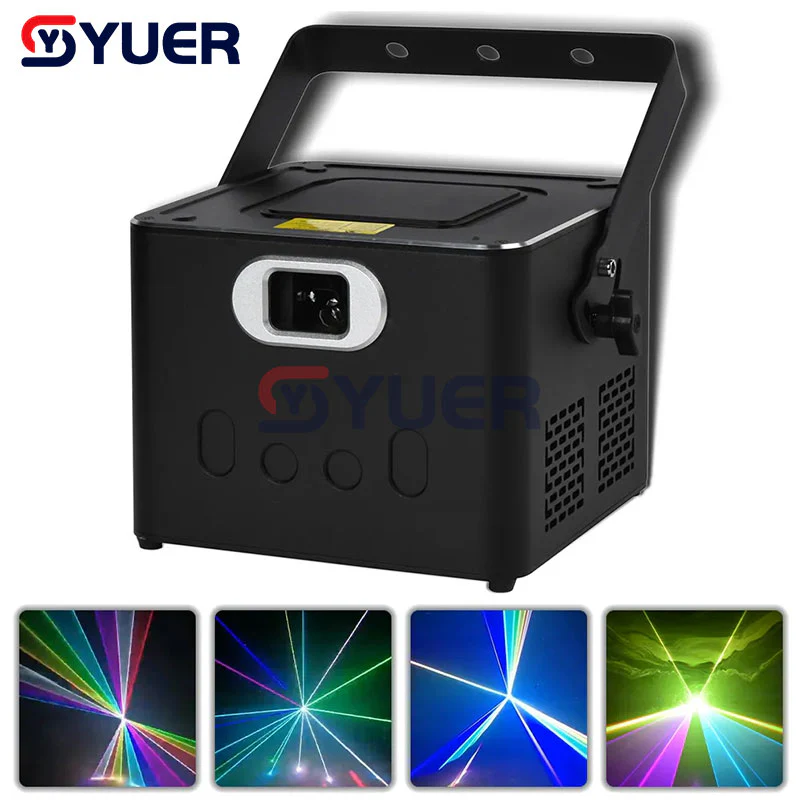

YUER™️ NEW ILDA 8W Animation Scanner RGB Laser Lines Beam Stage Light Projector DMX DJ Disco Dance Bar Professional Laser Light

Description:

Laser power: R red 2500mw (638nm) G green 2500mw (525nm) B blue 3000mw (450nm)
Playing system: DMX512, voice control, automatic, ILDA, animation, the laser show in the scene can be selected through DMX.
Display system: color LCD display, which can be freely converted between Chinese and English
Imaging system: 30KPSS high-speed scanning galvanometer, scanning angle ±25°, input signal ±5V, linear distortion <2%.

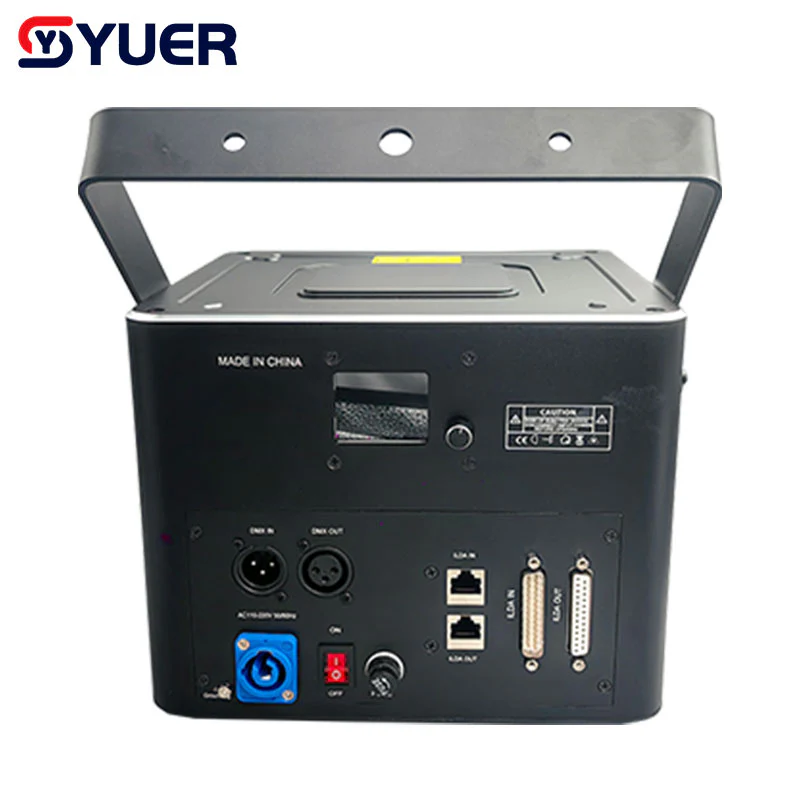

Control interface: DMX512 (18/25 channels), 512 signal automatic identification, ILDA (standard computer software interface)
DMX special effects: color, strobe, bright spot on line, horizontal movement, vertical movement, zoom, X flip, Y flip, center forward and reverse, gradual drawing, X wave special effect, Y wave special effect, (when the analog laser is selected, red Green and blue can modulate the brightness separately)
Program effects: various light beams, geometric figures, animations, broken pen effects, more than 200 kinds of beam animation effects
Program compilation: DMX512 can program various light beams and animation programs, use the control software to connect to the computer, and can program more rich animation programs
Laser modulation: TTL and analog optional (0~3Khz)
Beam divergence angle: 6.5mm, <1.2mrad
Machine power: 70W
Weight: 5.9KG

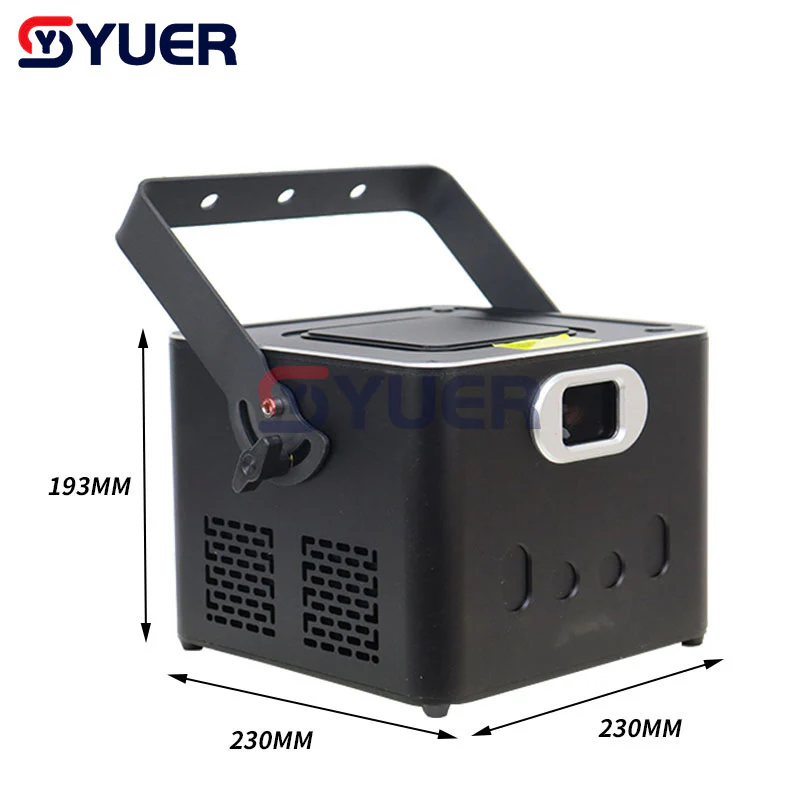

Dimensions: 230*230*193

User’s manual:
